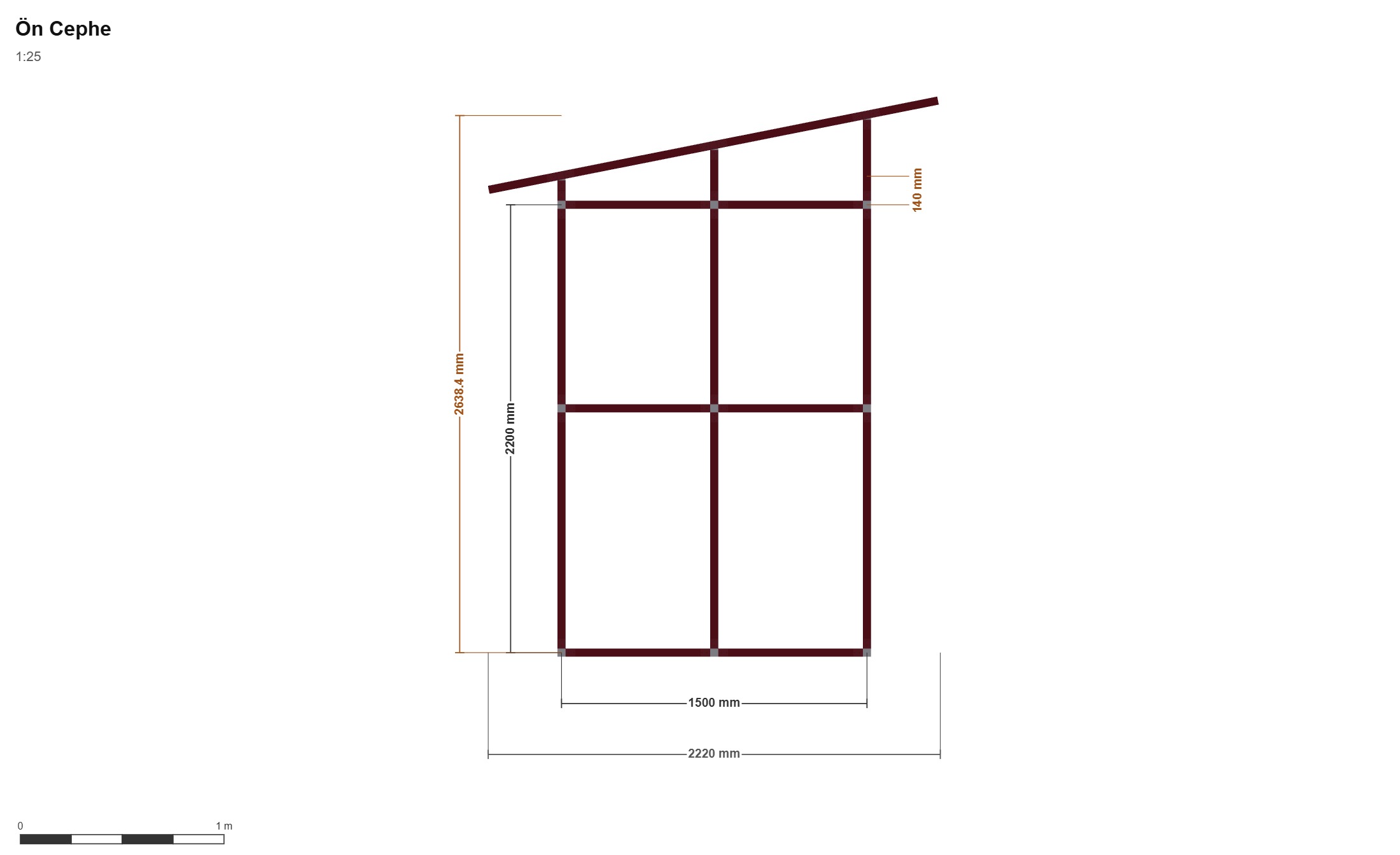

150x240x220 — Ön Görünüş, ölçülü teknik çizim

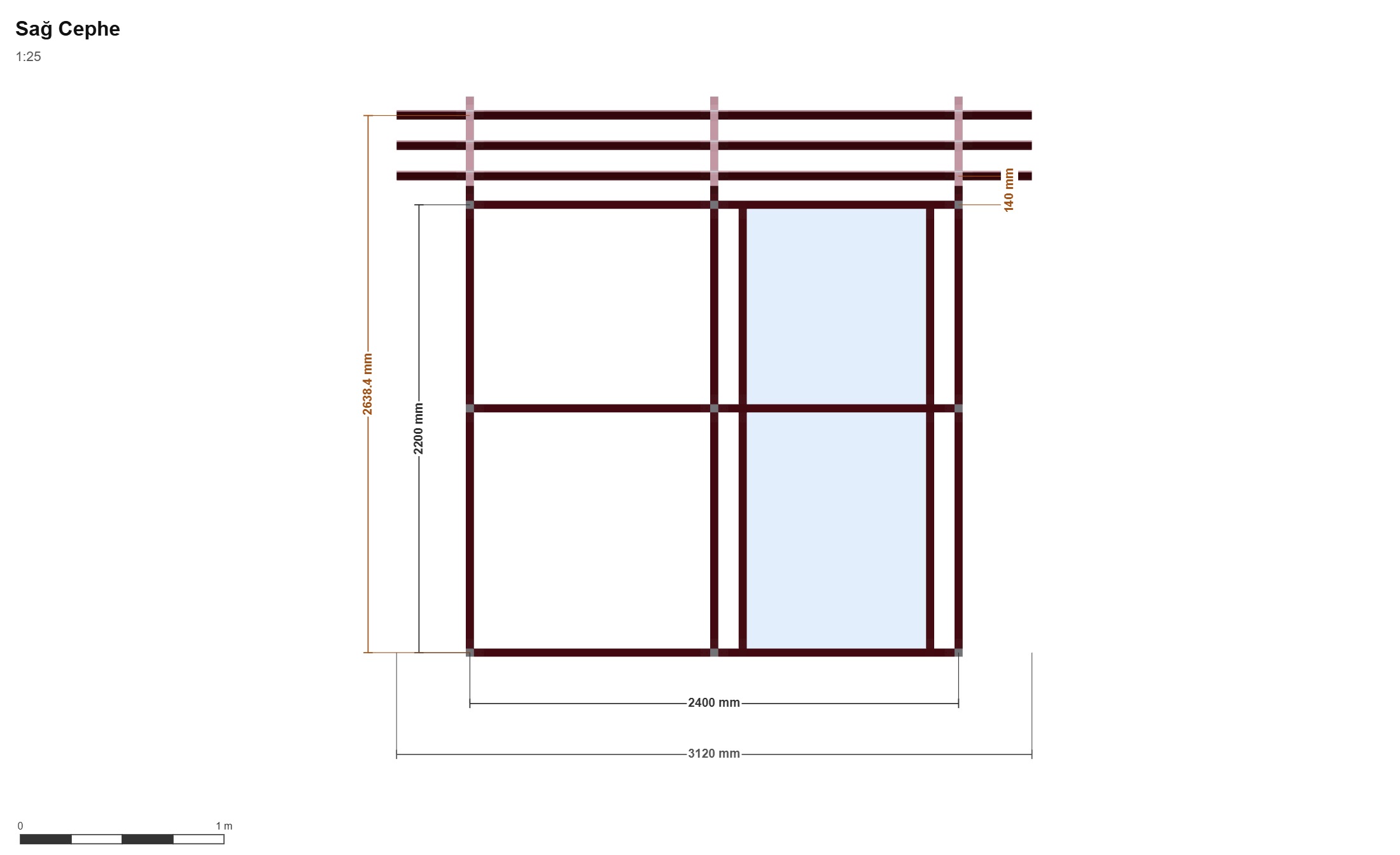

150x240x220 — Sağ Yan Görünüş, ölçülü teknik çizim

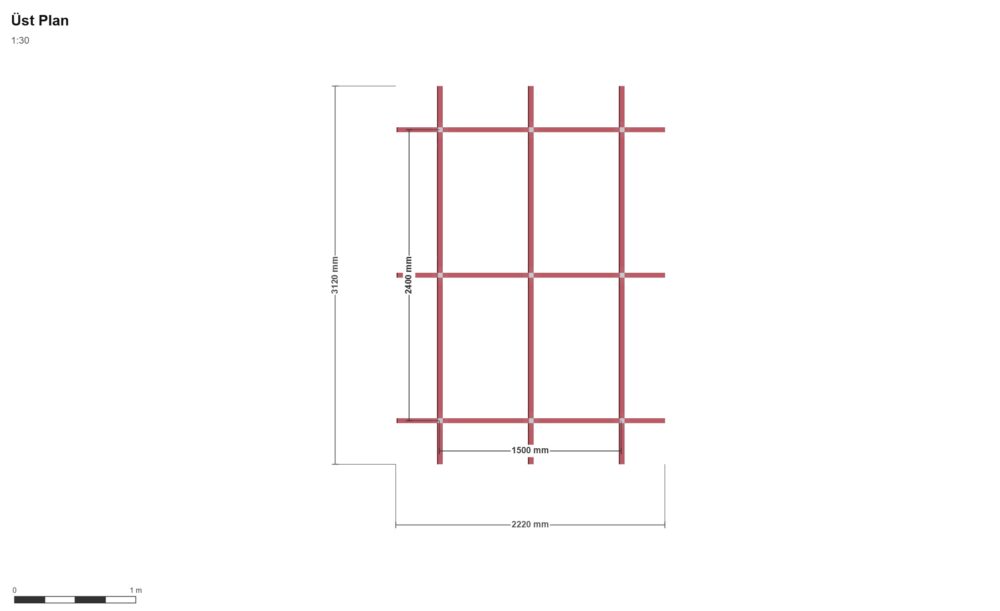

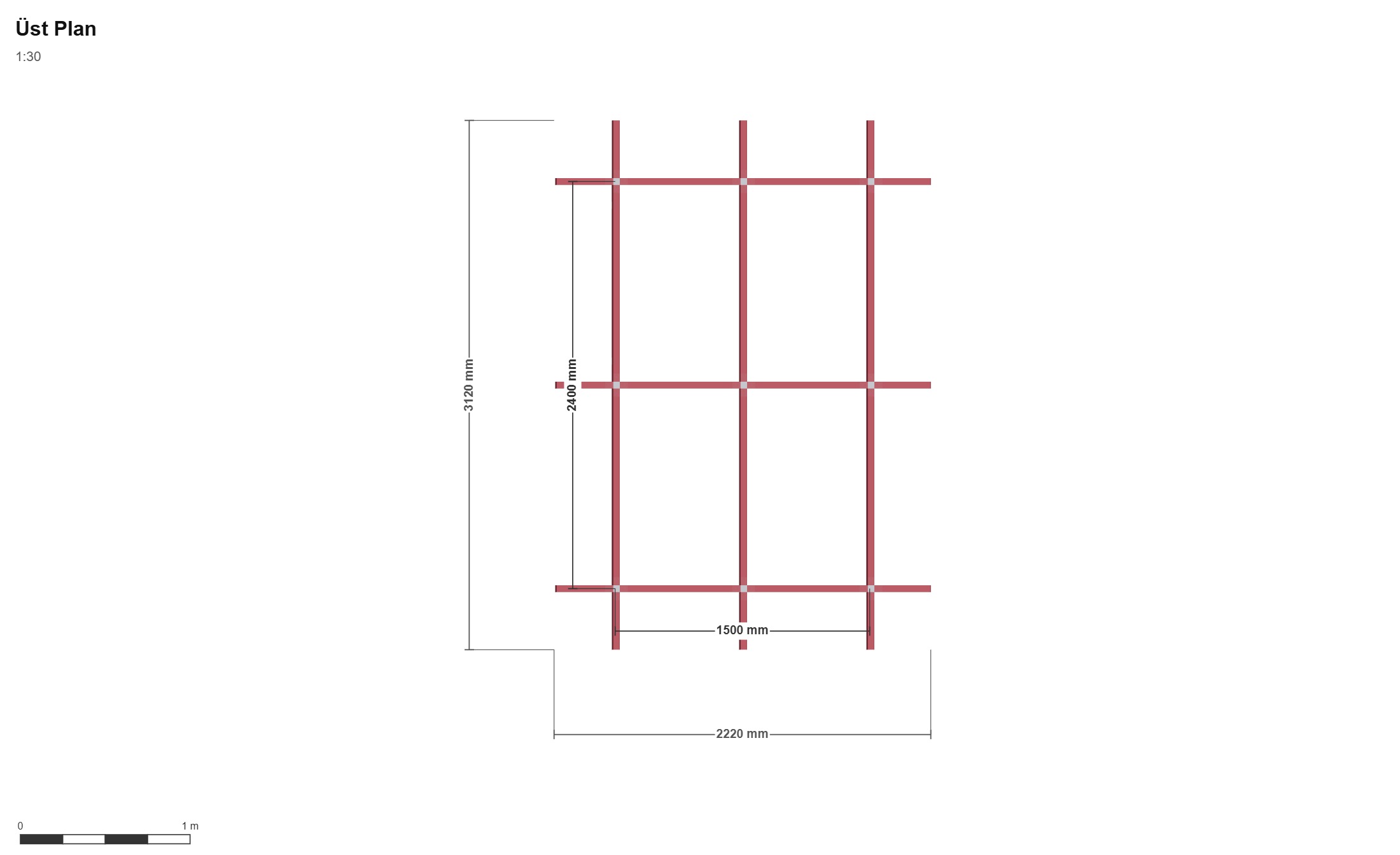

150x240x220 — Üst Görünüş (Plan), ölçülü teknik çizim
3D
AR

150x240x220 Storage Shed

€400.23 %2.6 off

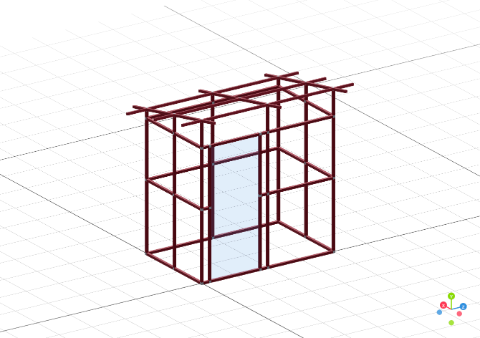

Ready-made OkiFix system Evcik — 150×240 cm, 120 pieces. Examine it by rotating the 3D preview; use “Edit This Evcik” to adjust the dimensions to your needs.

This product is added to the cart as 15 line items (420 parts in total) (profiles, OkiFix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This Evcik Assemble This Evcik
SKU: EVCIK-DSGN-38 Categories: , ,

Description

This product is an OkiFix construction measuring 150×240 cm, prepared with the Evcik design application. Thanks to the screw-free, weld-free OkiFix connection system, the parts can be disassembled and reassembled.

When you add it to your cart, all the parts that make up the product (profiles, OkiFix connectors and bolt sets) are added to your cart individually — you can view the full breakdown and package information in the “Parts List” tab.

If you want to change the dimensions or layout, you can open and edit the design in your own account using the “Edit This Evcik” button, and order your own version.

Parts List

All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

PartLengthQtyUnit PriceAmount
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1—4€4.56€18.24
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1—8€5.64€45.12
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1—10€4.32€43.20
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1—9€5.28€47.52
11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1—8€7.20€57.60
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1160 mm25€3.09€77.25
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)710 mm12€2.14€25.70
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)100 mm9€0.86€7.71
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)960 mm10€2.67€26.69
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)880 mm2€2.50€5.00
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)398 mm3€1.48€4.45
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)249 mm2€1.17€2.34
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)725 mm6€2.17€13.04
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)340 mm12€1.36€16.35
M6x45 Bolt and Nut—300€0.07€20.58
Total€410.81

Package Information

  • Total weight: 194,0 kg
  • Package dimensions: 120 × 80 × 52 cm
  • Volume: 0,50 m³
  • Number of boxes: 1

Additional information

Assembled Product Dimensions 221 × 312 × 274 cm (Width × Depth × Height)
Package Weight 193,96 kg
Package Dimensions (shipping) 120 × 80 × 52 cm
