180*540 WC ve Oda

€1,286.45 5.1% off

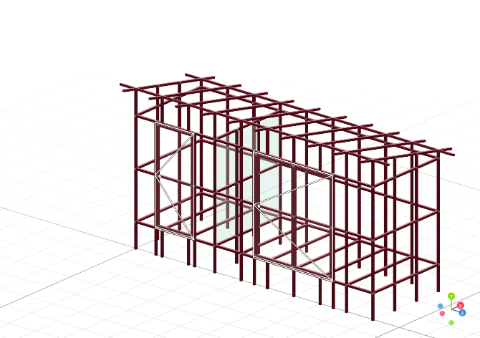

180*540 WC ve Oda: an okifix structure that bolts together without welding. Assembled size: 251 × 612 × 309 cm, 401 parts. Explore the 3D preview; use “Edit This evcik” to adapt the dimensions.

This product is added to the cart as 24 line items (1389 parts in total) (profiles, okifix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This evcik Assemble This evcik
SKU: EVCIK-DSGN-86 Category:

Description

180*540 WC ve Oda is an okifix structure designed with the evcik design app; its assembled size is 251 × 612 × 309 cm (Width × Depth × Height). Cut and drilled steel profiles are bolted to cast aluminum okifix connectors; no welding or electricity is needed. The parts can be taken apart and reassembled.

When you add it to your cart, every part of the product (profiles, okifix connectors and bolt sets) is added to your cart individually — see the full breakdown and package details in the “Parts List” tab.

To change the dimensions or layout, use the “Edit This evcik” button to open the design in your own account, edit it and order your own version.

Parts List

All the parts that make up this evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

PartLengthQtyUnit PriceAmount
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1—17€5.64€95.88
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1—38€5.28€200.64
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1—21€4.32€90.72
11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1—20€7.20€144.00
Five-Way Surface Mount Post Connector for 40×40 mm Box Profiles 4040MD05-1—15€6.60€99.00
11.25° Angle Three-Way T Connector for 40×40 mm Box Profiles 4040LA03-1—4€4.56€18.24
Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1—12€3.24€38.88
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)960 mm50€2.91€145.37
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)560 mm84€1.97€165.21
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)420 mm6€1.64€9.83
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)100 mm14€0.89€12.39
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)458 mm10€1.73€17.27
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1760 mm7€4.79€33.52
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)339 mm2€1.45€2.89
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)572 mm6€1.99€11.97
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)340 mm24€1.45€34.79
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)219 mm2€1.16€2.33
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1796 mm8€4.87€38.99
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)260 mm10€1.26€12.61
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)910 mm12€2.79€33.48
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)740 mm3€2.39€7.17
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)785 mm6€2.50€14.98
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)500 mm30€1.83€54.77
M6x45 Bolt and Nut—988€0.07€70.27
Total€1,355.19

Package Information

  • Total weight: 493,6 kg
  • Package dimensions: 180 × 80 × 86 cm
  • Volume: 1,24 m³
  • Number of boxes: 2

Additional information

Assembled Product Dimensions 251 × 612 × 309 cm (Width × Depth × Height)
Package Weight 493,61 kg
Package Dimensions (shipping) 180 × 80 × 86 cm
