180×240 Kümes V2

€577.89 2.6% off

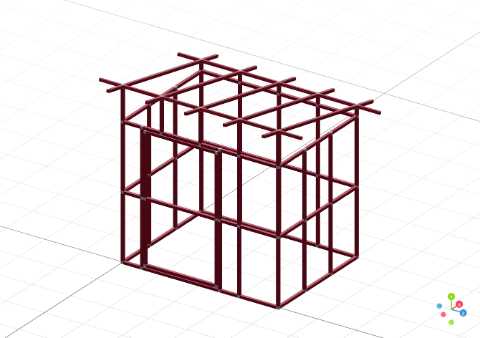

180×240 Kümes V2: an okifix structure that bolts together without welding. Assembled size: 251 × 312 × 260 cm, 175 parts. Explore the 3D preview; use “Edit This evcik” to adapt the dimensions.

This product is added to the cart as 17 line items (607 parts in total) (profiles, okifix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This evcik Assemble This evcik
SKU: EVCIK-DSGN-69 Category:

Description

180×240 Kümes V2 is an okifix structure designed with the evcik design app; its assembled size is 251 × 312 × 260 cm (Width × Depth × Height). Cut and drilled steel profiles are bolted to cast aluminum okifix connectors; no welding or electricity is needed. The parts can be taken apart and reassembled.

When you add it to your cart, every part of the product (profiles, okifix connectors and bolt sets) is added to your cart individually — see the full breakdown and package details in the “Parts List” tab.

To change the dimensions or layout, use the “Edit This evcik” button to open the design in your own account, edit it and order your own version.

Parts List

All the parts that make up this evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

PartLengthQtyUnit PriceAmount
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1—4€4.56€18.24
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1—8€5.64€45.12
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1—22€4.32€95.04
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1—12€5.28€63.36
11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1—10€7.20€72.00
Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1—4€3.24€12.96
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)960 mm28€2.91€81.41
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)560 mm42€1.97€82.60
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)260 mm8€1.26€10.09
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1160 mm1€3.38€3.38
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)458 mm5€1.73€8.63
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)340 mm14€1.45€20.29
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1796 mm5€4.87€24.37
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)100 mm5€0.89€4.43
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)910 mm4€2.79€11.16
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1060 mm3€3.14€9.43
M6x45 Bolt and Nut—432€0.07€30.73
Total€593.23

Package Information

  • Total weight: 228,2 kg
  • Package dimensions: 180 × 80 × 56 cm
  • Volume: 0,81 m³
  • Number of boxes: 2

Additional information

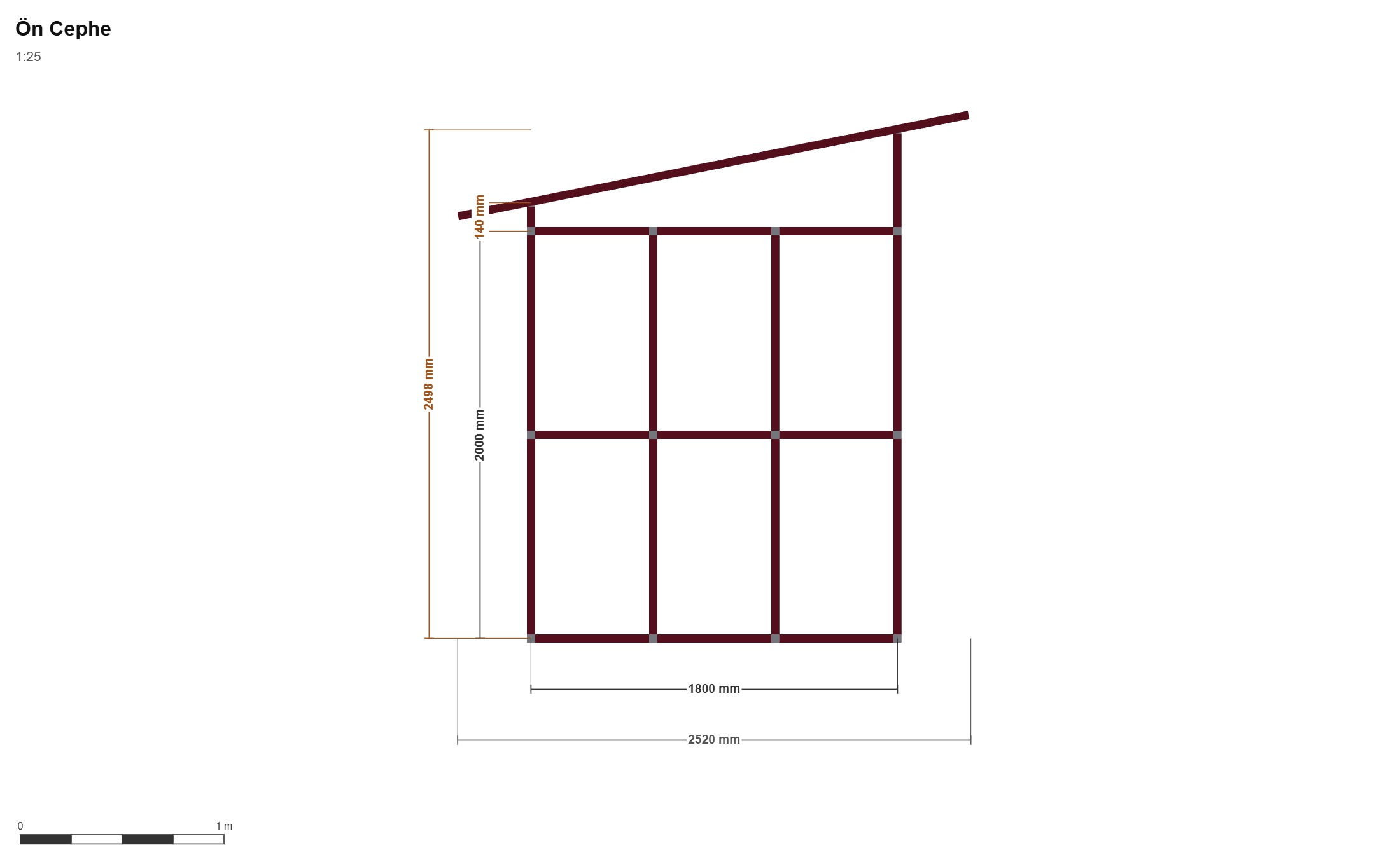

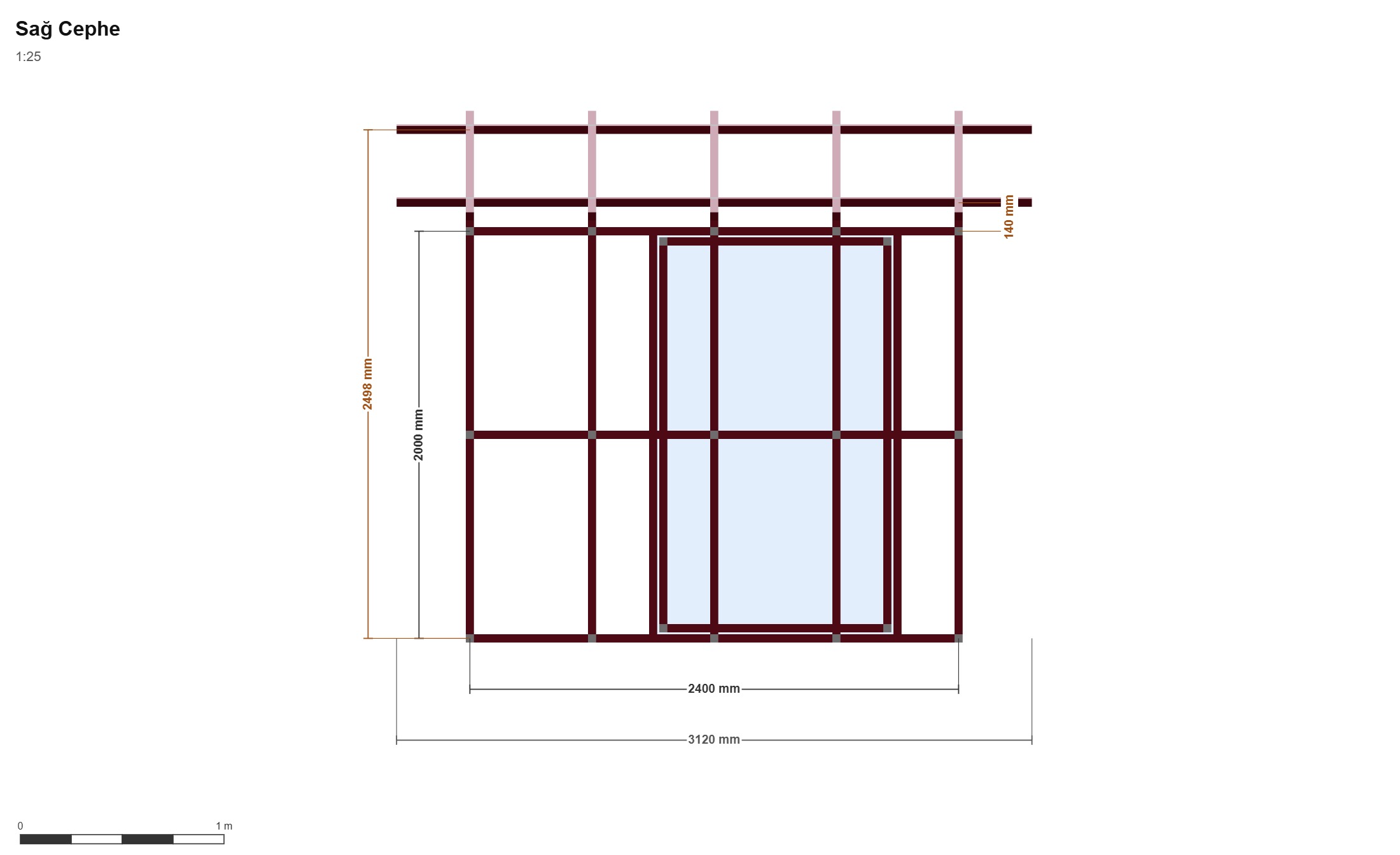

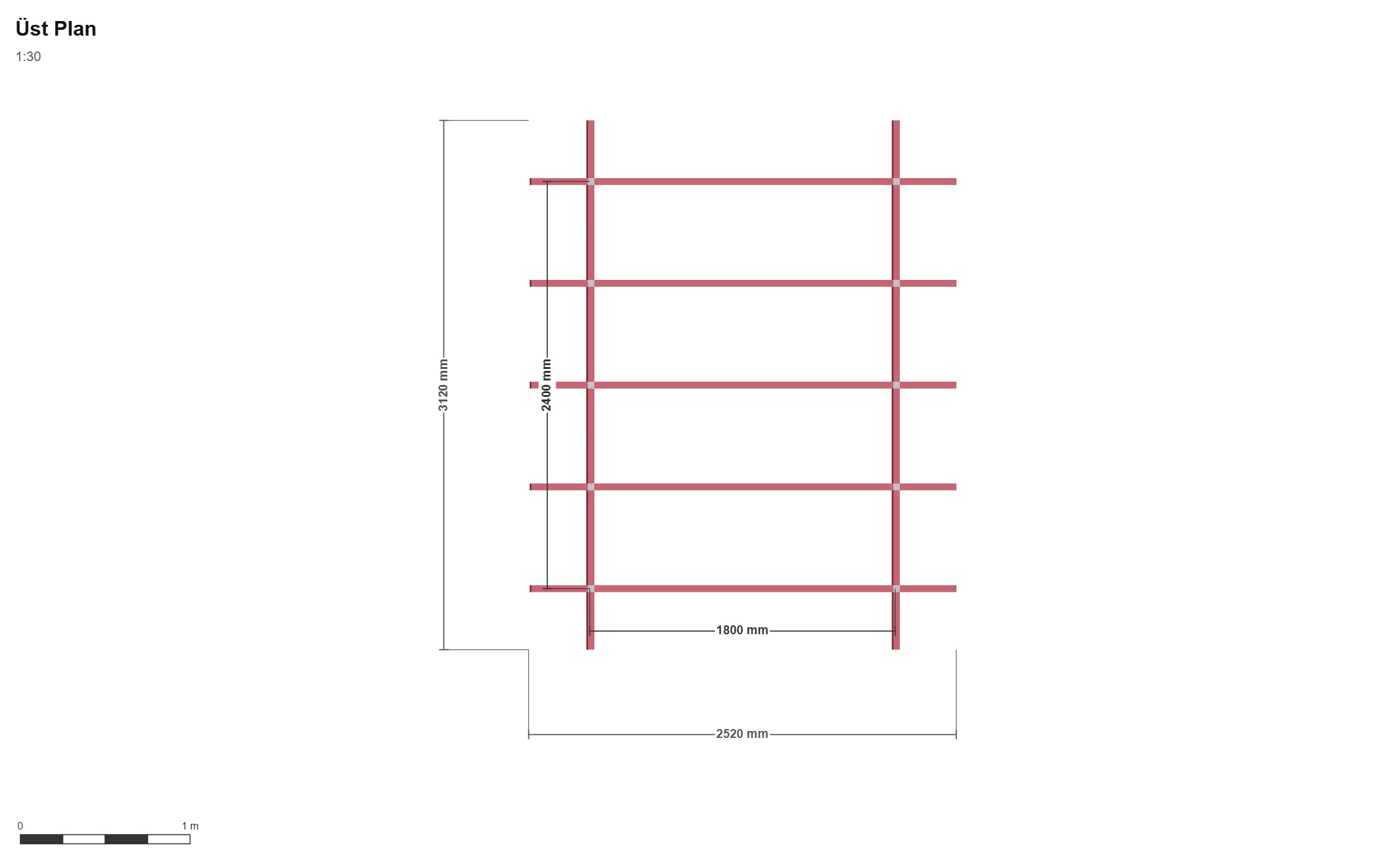

Assembled Product Dimensions 251 × 312 × 260 cm (Width × Depth × Height)
Package Weight 228,21 kg
Package Dimensions (shipping) 180 × 80 × 56 cm
