200x60x160 Two-Compartment Shelf with Double-Wing Door

€302.70 %7.7 off

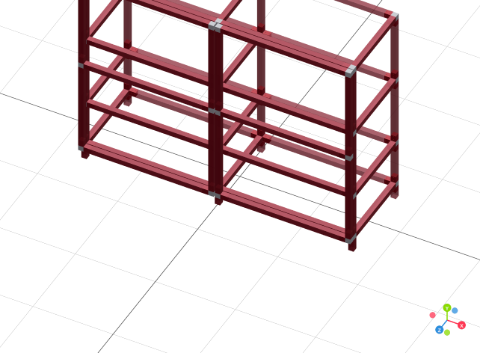

Ready-made Evcik with OkiFix system — 200×60 cm, 102 pieces. Rotate the 3D preview to examine it; use “Edit This Evcik” to customize the dimensions to your needs.

This product is added to the cart as 13 line items (354 parts in total) (profiles, OkiFix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This Evcik Assemble This Evcik
SKU: EVCIK-DSGN-28 Categories: , ,

Description

This product is an OkiFix construction measuring 200×60 cm, prepared with the Evcik design application. Thanks to the screw-free, weld-free OkiFix connection system, the parts can be disassembled and reassembled.

When you add it to your cart, all the parts that make up the product (profiles, OkiFix connectors and bolt sets) are added to your cart individually — you can view the full breakdown and package information in the “Parts List” tab.

If you want to change the dimensions or layout, you can open the design in your own account and edit it using the “Edit This Evcik” button, then order your own version.

Parts List

All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

PartLengthQtyUnit PriceAmount
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1—14€5.64€78.96
Five-Way Surface Mount Post Connector for 40×40 mm Box Profiles 4040MD05-1—6€6.60€39.60
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1—4€4.56€18.24
Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1—8€3.24€25.92
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1—4€4.32€17.28
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)100 mm6€0.86€5.14
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)320 mm6€1.32€7.92
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)510 mm12€1.72€20.65
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)960 mm16€2.67€42.70
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)560 mm12€1.83€21.91
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)690 mm8€2.10€16.80
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)935 mm6€2.62€15.70
M6x45 Bolt and Nut—252€0.07€17.29
Total€328.11

Package Information

  • Total weight: 148,7 kg
  • Package dimensions: 120 × 80 × 52 cm
  • Volume: 0,50 m³
  • Number of boxes: 1

Additional information

Assembled Product Dimensions 205 × 72 × 161 cm (Width × Depth × Height)
Package Weight 148,65 kg
Package Dimensions (shipping) 120 × 80 × 52 cm
