Description

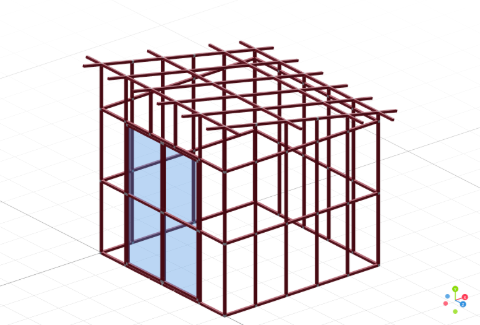

Bu ürün, evcik tasarım uygulamasıyla hazırlanmış 300×300 cm ölçülerinde bir OkiFix konstrüksiyondur. Vidasız-kaynaksız OkiFix bağlantı sistemi sayesinde parçalar sökülüp yeniden kurulabilir.
Sepete eklediğinizde ürünü oluşturan tüm parçalar (profiller, OkiFix bağlantılar ve cıvata setleri) tek tek sepetinize eklenir — “Parça Listesi” sekmesinden tam dökümü ve paket bilgilerini görebilirsiniz.
Ölçüleri veya yerleşimi değiştirmek isterseniz “Bu Evciği Düzenle” butonuyla tasarımı kendi hesabınızda açıp düzenleyebilir, kendi sürümünüzü sipariş edebilirsiniz.
Parts List
All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.
| Part | Length | Qty | Unit Price | Amount |
|---|
| Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1 | — | 4 | ₺255,20 | ₺1.020,80 |
| Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1 | — | 8 | ₺315,65 | ₺2.525,20 |
| Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1 | — | 22 | ₺241,78 | ₺5.319,16 |
| Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1 | — | 34 | ₺295,50 | ₺10.047,00 |
| Two-Way Straight Connector Compatible with 40×40 mm 2 mm Wall Thickness Box Profiles 4040LN02-1 | — | 1 | ₺181,33 | ₺181,33 |
| 11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1 | — | 16 | ₺402,95 | ₺6.447,20 |
| 11.25° Angle Three-Way T Connector for 40×40 mm Box Profiles 4040LA03-1 | — | 4 | ₺255,20 | ₺1.020,80 |
| Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1 | — | 8 | ₺181,33 | ₺1.450,64 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 1160 mm | 36 | ₺170,36 | ₺6.132,94 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 560 mm | 74 | ₺100,86 | ₺7.463,88 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 860 mm | 2 | ₺135,61 | ₺271,22 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 697 mm | 6 | ₺116,73 | ₺700,39 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 577 mm | 2 | ₺102,83 | ₺205,66 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 572 mm | 14 | ₺102,25 | ₺1.431,54 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 340 mm | 20 | ₺75,38 | ₺1.507,62 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 458 mm | 2 | ₺89,05 | ₺178,10 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 1184 mm | 8 | ₺173,14 | ₺1.385,11 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 339 mm | 2 | ₺75,27 | ₺150,53 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 219 mm | 2 | ₺61,37 | ₺122,73 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 100 mm | 6 | ₺47,58 | ₺285,50 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 1115 mm | 8 | ₺165,15 | ₺1.321,18 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 793 mm | 3 | ₺127,85 | ₺383,55 |
| 40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm) | 792 mm | 3 | ₺127,74 | ₺383,21 |
| M6x45 Bolt and Nut | — | 712 | ₺3,77 | ₺2.684,24 |
| Total | ₺52.619,54 |
|---|
Package Information
- Total weight: 401,4 kg
- Package dimensions: 120 × 80 × 78 cm
- Volume: 0,75 m³
- Number of boxes: 1
