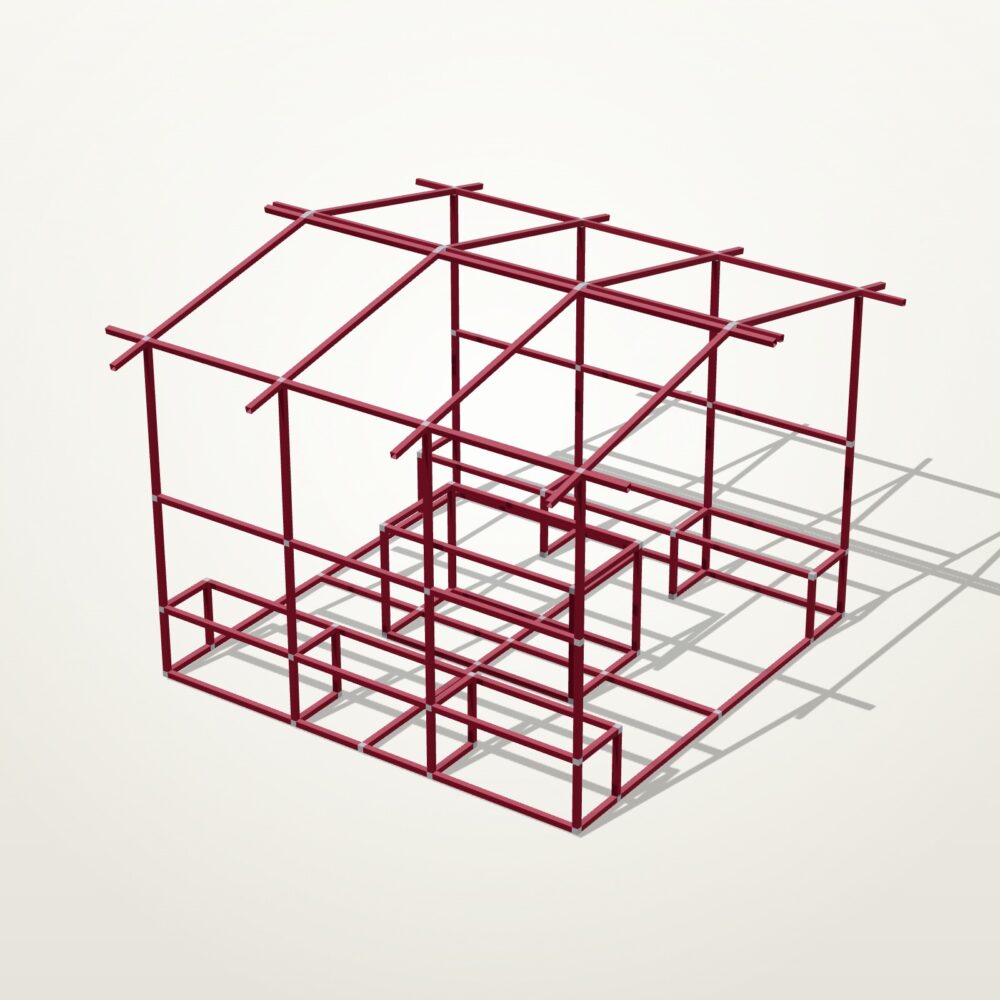

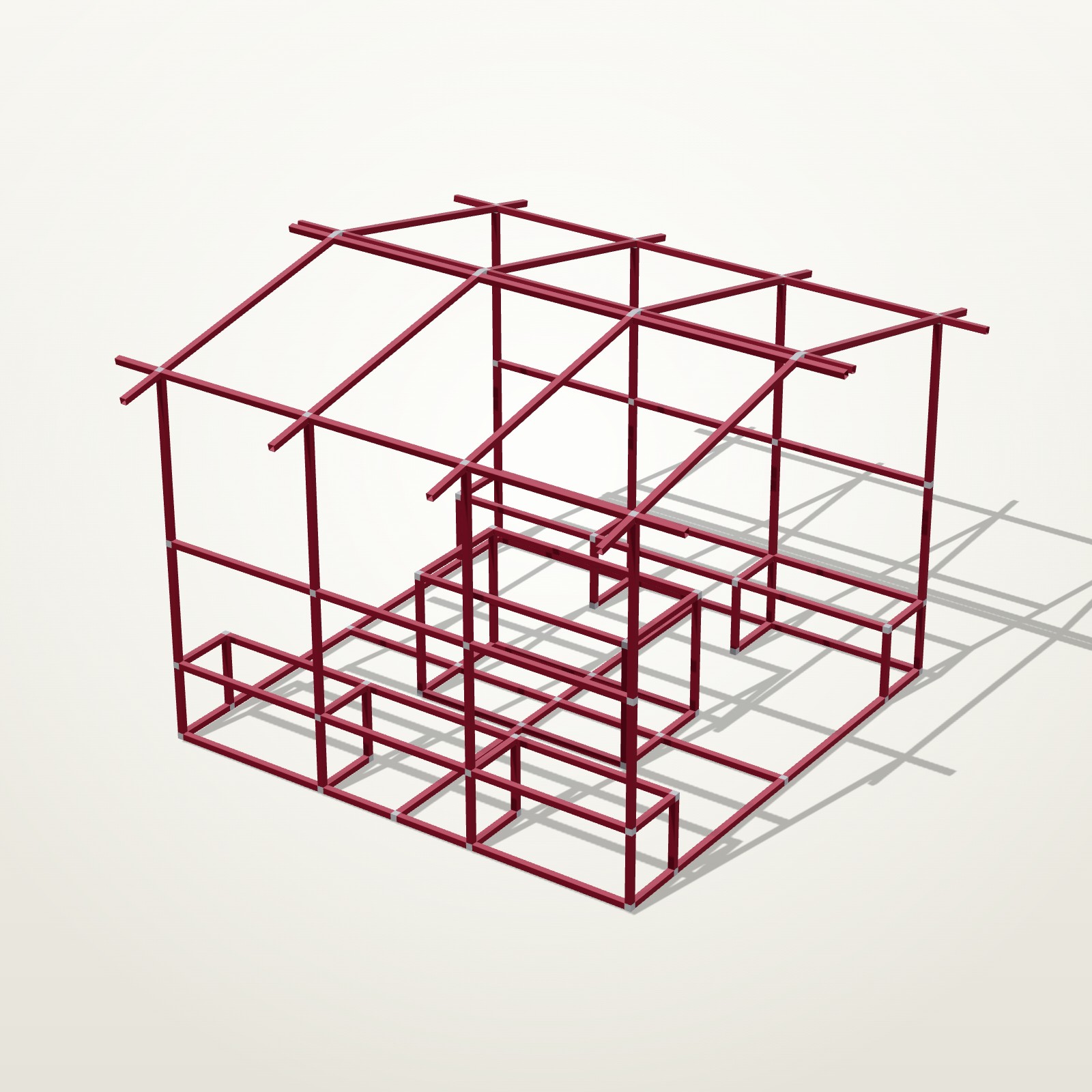

300x300 Kamelya - OkiFix konstrüksiyon

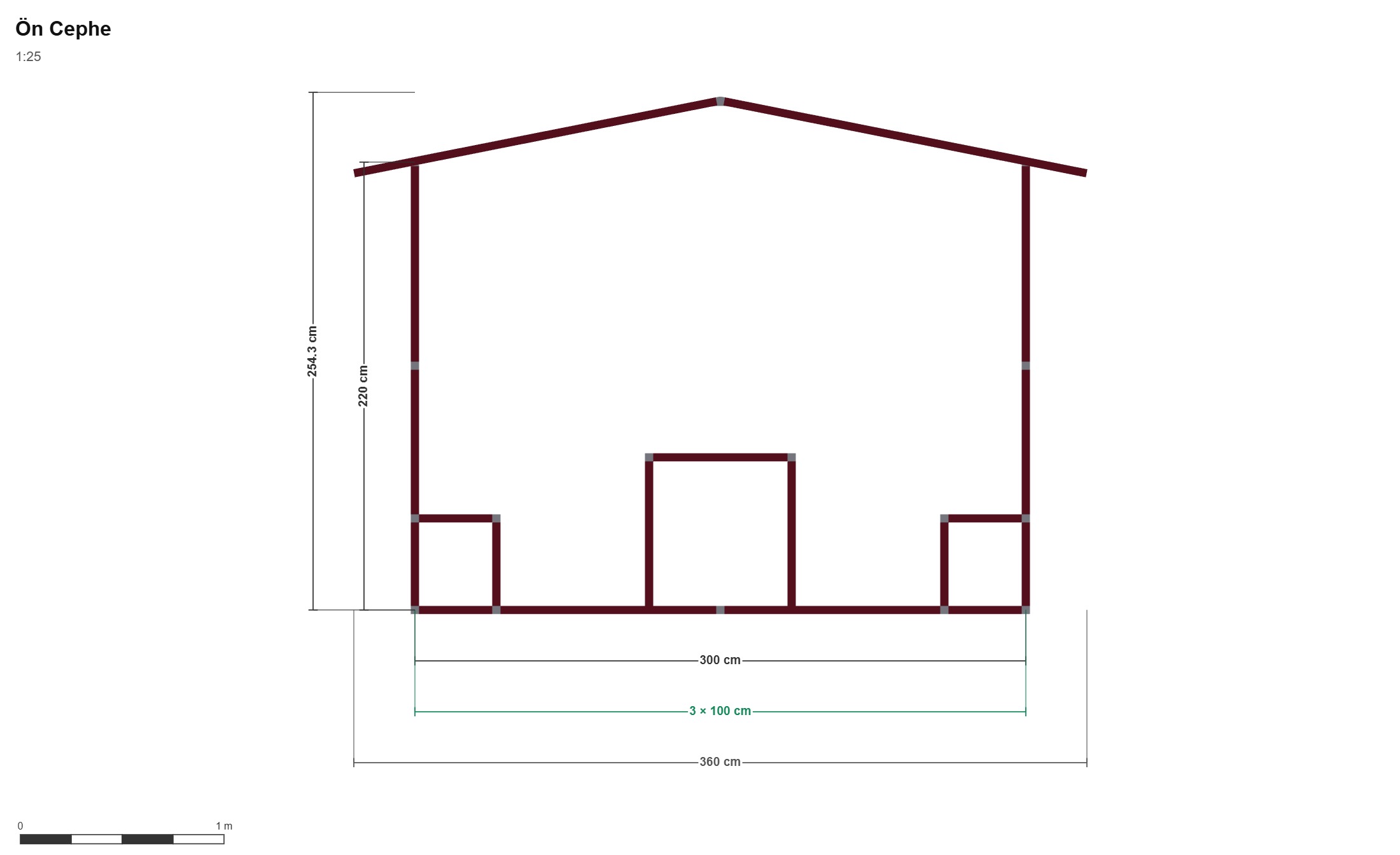

300x300 Kamelya — Ön Görünüş, ölçülü teknik çizim

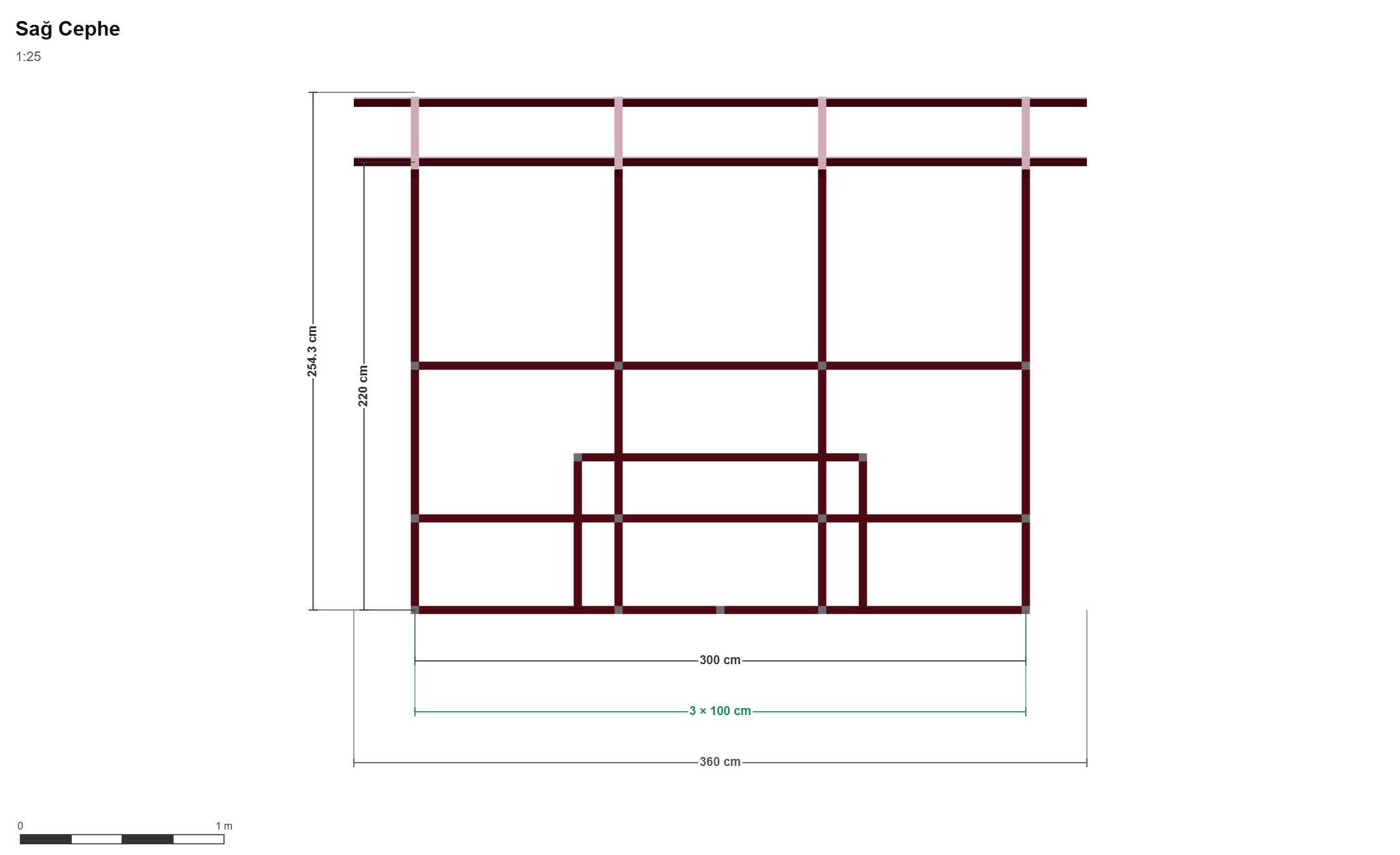

300x300 Kamelya — Sağ Yan Görünüş, ölçülü teknik çizim

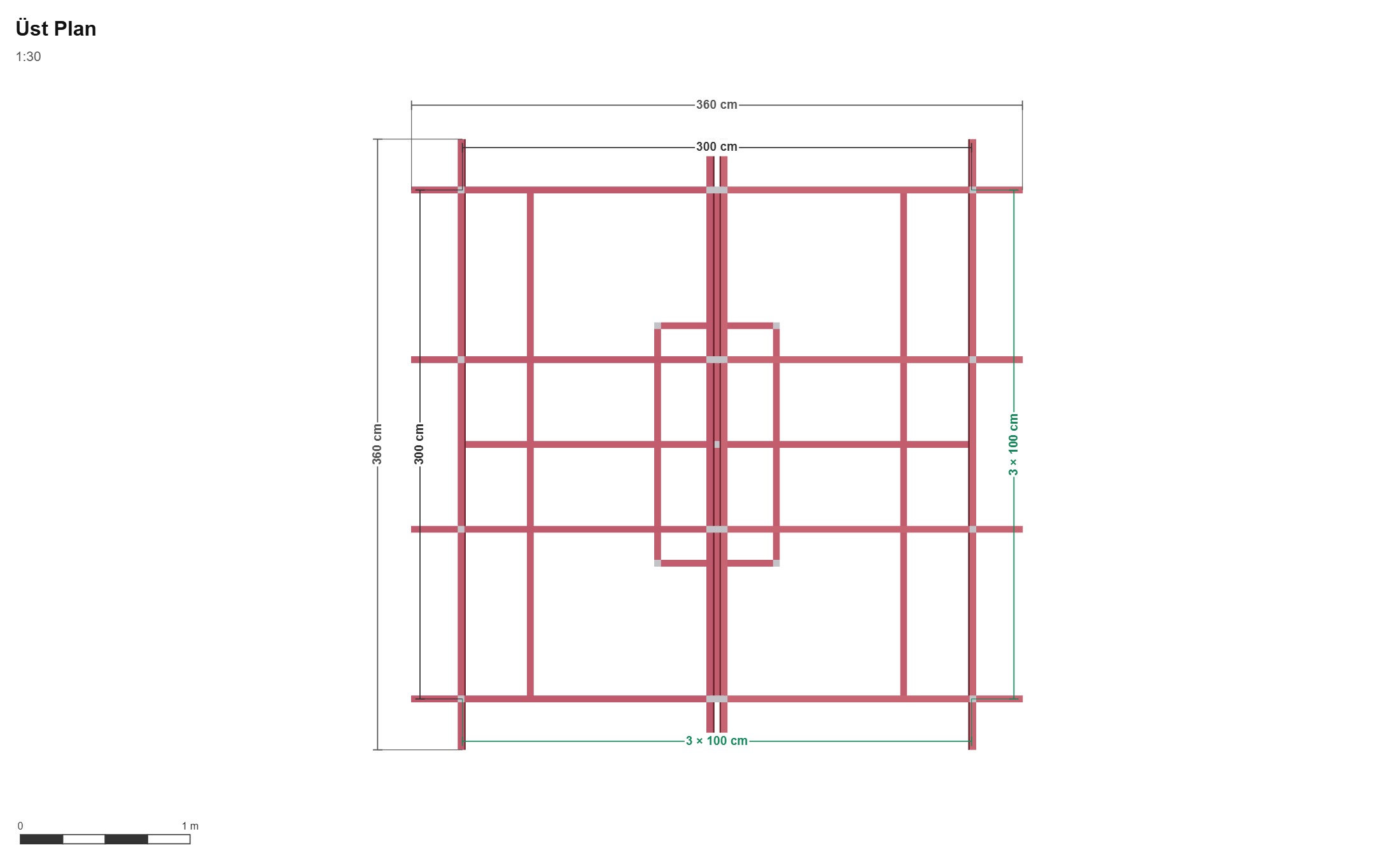

300x300 Kamelya — Üst Görünüş (Plan), ölçülü teknik çizim

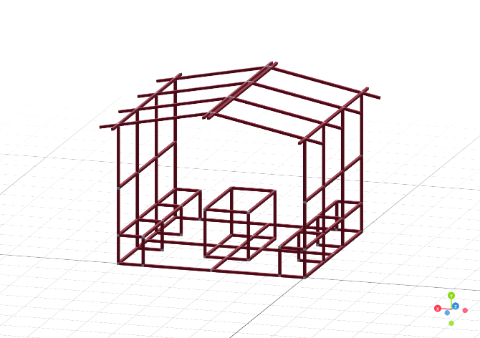

3D
AR

300×300 Kamelya

€689.84 %2.7 off

OkiFix sistemli hazır evcik — 300×300 cm, 207 parça. 3D önizlemeyi döndürerek inceleyin; “Bu Evciği Düzenle” ile ölçüleri kendinize göre uyarlayın.

This product is added to the cart as 23 line items (727 parts in total) (profiles, OkiFix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This Evcik Assemble This Evcik
SKU: EVCIK-DSGN-57 Category:

Description

Bu ürün, evcik tasarım uygulamasıyla hazırlanmış 300×300 cm ölçülerinde bir OkiFix konstrüksiyondur. Vidasız-kaynaksız OkiFix bağlantı sistemi sayesinde parçalar sökülüp yeniden kurulabilir.

Sepete eklediğinizde ürünü oluşturan tüm parçalar (profiller, OkiFix bağlantılar ve cıvata setleri) tek tek sepetinize eklenir — “Parça Listesi” sekmesinden tam dökümü ve paket bilgilerini görebilirsiniz.

Ölçüleri veya yerleşimi değiştirmek isterseniz “Bu Evciği Düzenle” butonuyla tasarımı kendi hesabınızda açıp düzenleyebilir, kendi sürümünüzü sipariş edebilirsiniz.

Parts List

All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

PartLengthQtyUnit PriceAmount
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1—16€4.56€72.96
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1—12€4.32€51.84
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1—12€5.64€67.68
11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1—8€7.20€57.60
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1—9€5.28€47.52
11.25° Angled Dual-Direction Purlin Ridge Connector Compatible with 40×40 mm Box Profiles, Four-Way 4040LR06-1—4€10.68€42.72
Five-Way Surface Mount Post Connector for 40×40 mm Box Profiles 4040MD05-1—4€6.60€26.40
Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1—4€3.24€12.96
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)410 mm16€1.51€24.16
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)360 mm16€1.40€22.48
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)960 mm36€2.67€96.07
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)460 mm4€1.62€6.46
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)280 mm16€1.24€19.78
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1060 mm4€2.88€11.52
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)760 mm2€2.25€4.49
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1110 mm2€2.98€5.97
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1455 mm8€3.71€29.69
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)710 mm12€2.14€25.70
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)660 mm8€2.04€16.29
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)310 mm6€1.30€7.80
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)961 mm6€2.67€16.02
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)1360 mm2€3.51€7.02
M6x45 Bolt and Nut—520€0.07€35.67
Total€708.82

Package Information

  • Total weight: 304,6 kg
  • Package dimensions: 145 × 80 × 70 cm
  • Volume: 0,81 m³
  • Number of boxes: 2

Additional information

Assembled Product Dimensions 360 × 360 × 259 cm (Width × Depth × Height)
Package Weight 304,57 kg
Package Dimensions (shipping) 145 × 80 × 70 cm
