Description

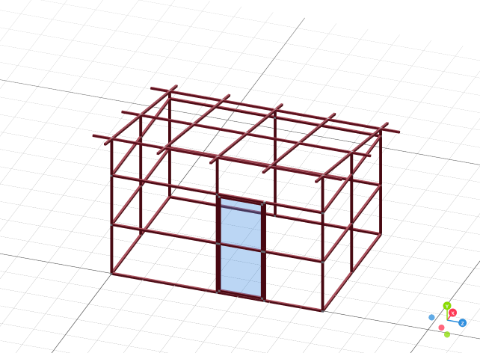

This product is an OkiFix construction measuring 300×400 cm, prepared with the doghouse design application. Thanks to the screw-free, weld-free OkiFix connection system, the parts can be disassembled and reassembled.
When you add it to your cart, all the parts that make up the product (profiles, OkiFix connectors, and bolt sets) are added to your cart individually — you can see the full breakdown and package information in the “Parts List” tab.
If you’d like to change the dimensions or layout, you can open and edit the design in your own account using the “Edit This Doghouse” button, and order your own version.
Parts List
All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.
| Part | Length | Qty | Unit Price | Amount |
|---|
| Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1 | — | 4 | ₺251,24 | ₺1.004,96 |
| Four-Way Corner Connector Compatible with 40×40 mm Box Profiles 4040ED04-1 | — | 8 | ₺310,75 | ₺2.486,00 |
| Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1 | — | 10 | ₺238,02 | ₺2.380,20 |
| Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1 | — | 14 | ₺290,92 | ₺4.072,88 |
| 11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1 | — | 8 | ₺396,71 | ₺3.173,68 |
| Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1 | — | 4 | ₺178,51 | ₺714,04 |
| 404020DPBXXXX | 960 mm | 30 | — | — |
| 404020DPBXXXX | 1460 mm | 12 | — | — |
| 404020DPBXXXX | 1960 mm | 9 | — | — |
| 404020DPBXXXX | 860 mm | 2 | — | — |
| 404020DPBXXXX | 697 mm | 3 | — | — |
| 404020DPBXXXX | 1060 mm | 3 | — | — |
| 404020DPBXXXX | 398 mm | 2 | — | — |
| 404020DPBXXXX | 1490 mm | 10 | — | — |
| 404020DPBXXXX | 340 mm | 16 | — | — |
| 404020DPBXXXX | 100 mm | 3 | — | — |
| 404020DPBXXXX | 915 mm | 4 | — | — |
| 404020DPBXXXX | 770 mm | 3 | — | — |
| M6x45 Bolt and Nut | — | 356 | ₺3,72 | ₺1.324,32 |
| Total | ₺15.156,08 |
|---|
Package Information
- Total weight: 286,2 kg
- Package dimensions: 196 × 80 × 60 cm
- Volume: 0,94 m³
- Number of boxes: 2
