Hilux Karavan Kabin V2 - OkiFix konstrüksiyon

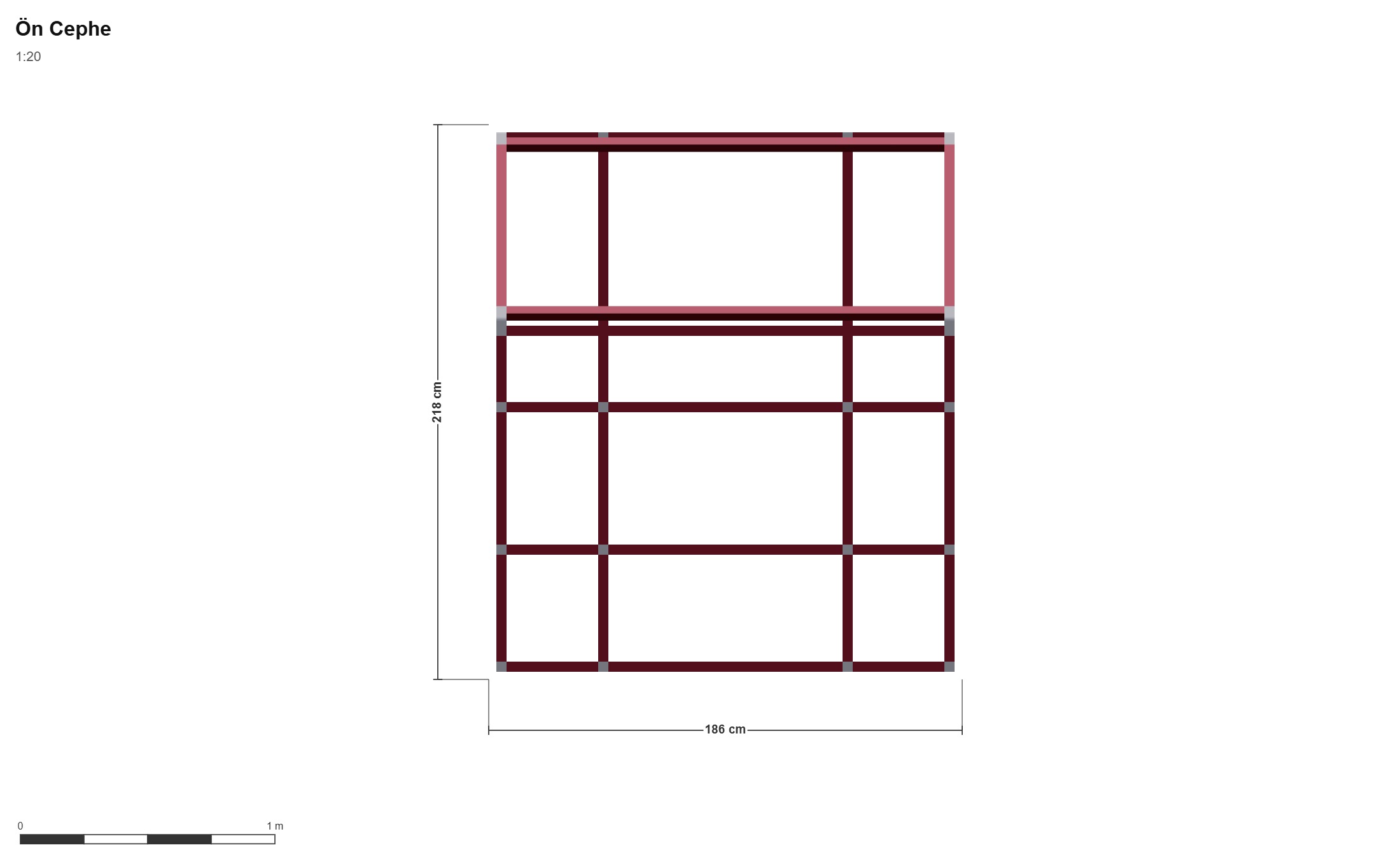

Hilux Karavan Kabin V2 — Ön Görünüş, ölçülü teknik çizim

Hilux Karavan Kabin V2

Name: Hilux Karavan Kabin V2
Brand: Evcik
SKU: EVCIK-DSGN-87
Price: 28126.75 TRY
Availability: InStock

€491.77 %2.6 off

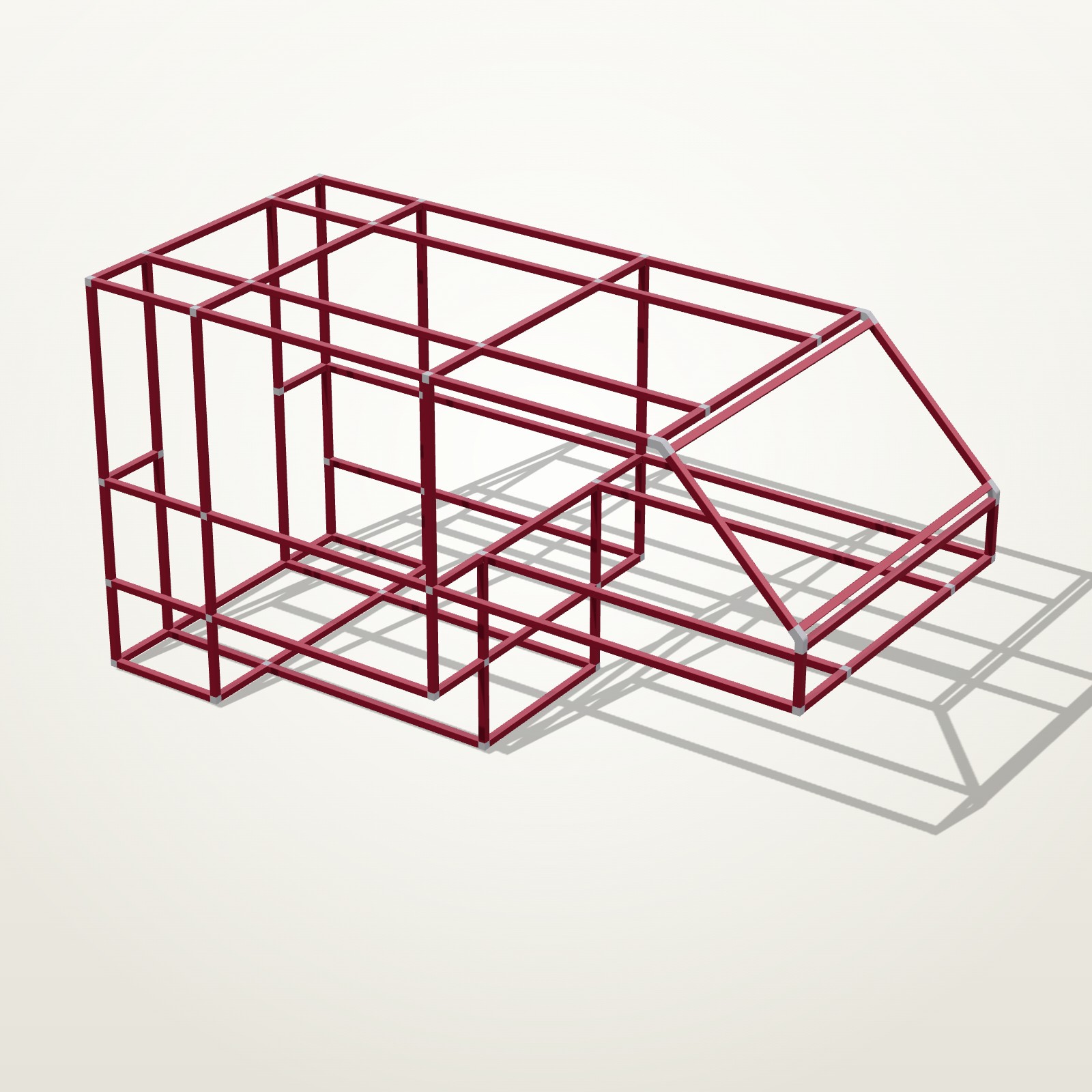

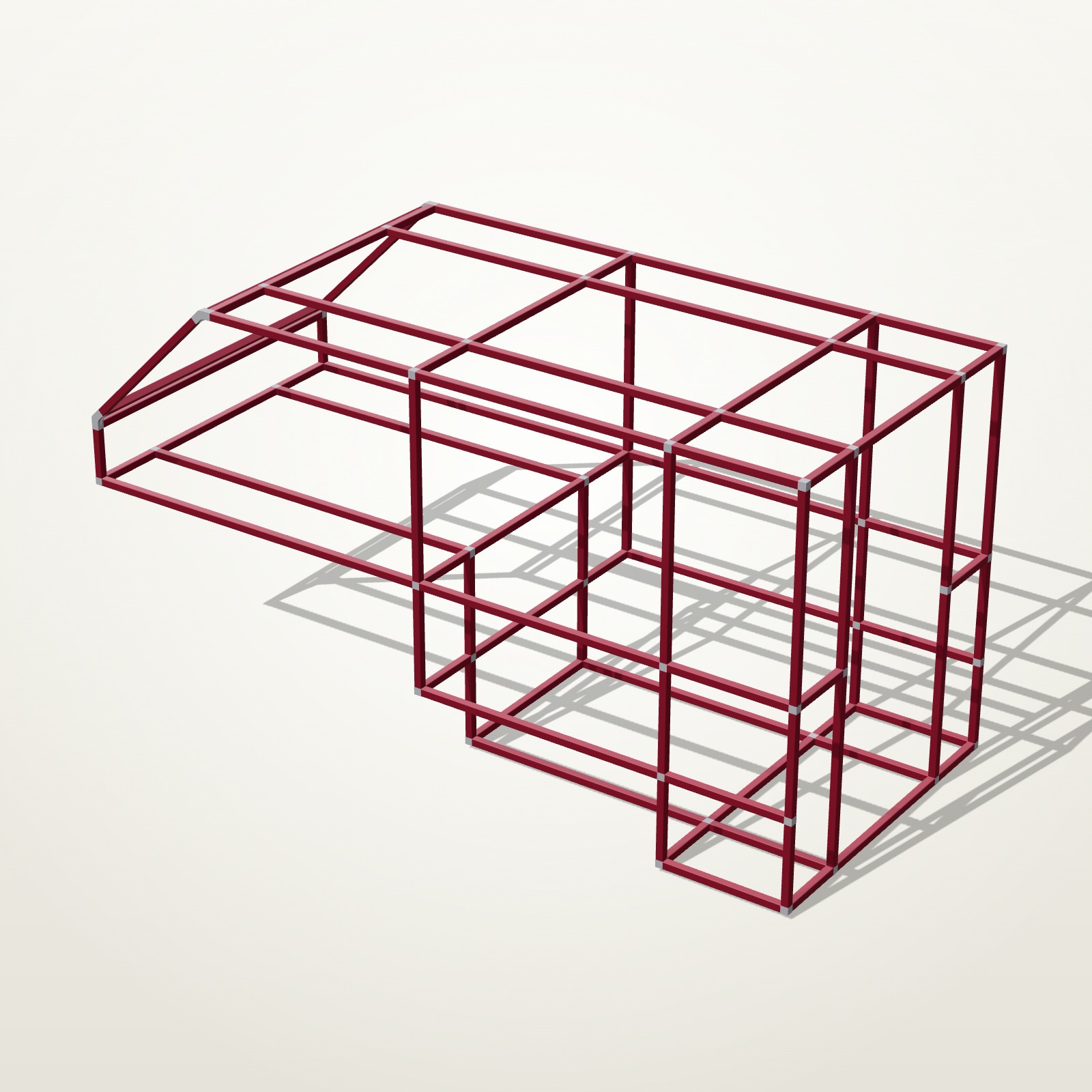

OkiFix sistemli hazır evcik — 240×360 cm, 141 parça. 3D önizlemeyi döndürerek inceleyin; “Bu Evciği Düzenle” ile ölçüleri kendinize göre uyarlayın.

This product is added to the cart as 20 line items (505 parts in total) (profiles, OkiFix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This Evcik Assemble This Evcik

SKU: EVCIK-DSGN-87 Category: Custom Projects

Description

Bu ürün, evcik tasarım uygulamasıyla hazırlanmış 240×360 cm ölçülerinde bir OkiFix konstrüksiyondur. Vidasız-kaynaksız OkiFix bağlantı sistemi sayesinde parçalar sökülüp yeniden kurulabilir.

Sepete eklediğinizde ürünü oluşturan tüm parçalar (profiller, OkiFix bağlantılar ve cıvata setleri) tek tek sepetinize eklenir — “Parça Listesi” sekmesinden tam dökümü ve paket bilgilerini görebilirsiniz.

Ölçüleri veya yerleşimi değiştirmek isterseniz “Bu Evciği Düzenle” butonuyla tasarımı kendi hesabınızda açıp düzenleyebilir, kendi sürümünüzü sipariş edebilirsiniz.

Parts List

All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

Part	Length	Qty	Unit Price	Amount
40×40 mm Box Profile Compatible 22.5° Angled Single-Direction Purlin Four-Way Ridge Connector 4040MR04-1	—	4	€8.16	€32.64
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1	—	12	€4.56	€54.72
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1	—	12	€5.64	€67.68
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1	—	8	€4.32	€34.56
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1	—	12	€5.28	€63.36
Five-Way Surface Mount Post Connector for 40×40 mm Box Profiles 4040MD05-1	—	2	€6.60	€13.20
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1920 mm	4	€4.69	€18.76
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	899 mm	2	€2.54	€5.08
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	260 mm	2	€1.19	€2.39
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1020 mm	8	€2.80	€22.36
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1160 mm	4	€3.09	€12.36
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	520 mm	8	€1.74	€13.93
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1320 mm	10	€3.43	€34.27
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	420 mm	6	€1.53	€9.19
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	620 mm	12	€1.95	€23.43
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	360 mm	20	€1.40	€28.10
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	920 mm	10	€2.58	€25.84
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1720 mm	3	€4.27	€12.81
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	980 mm	2	€2.71	€5.42
M6x45 Bolt and Nut	—	364	€0.07	€24.97
Total				€505.08
