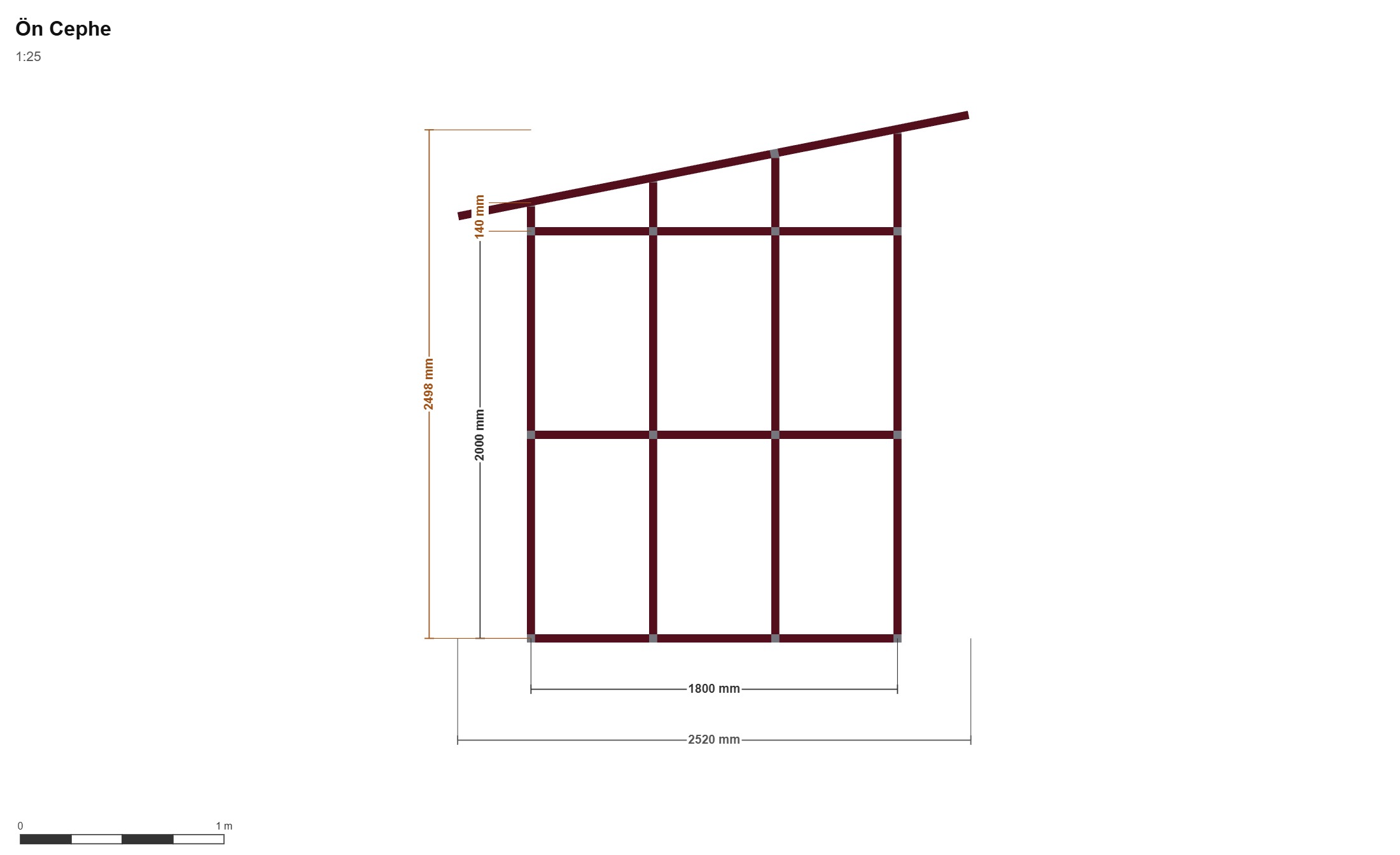

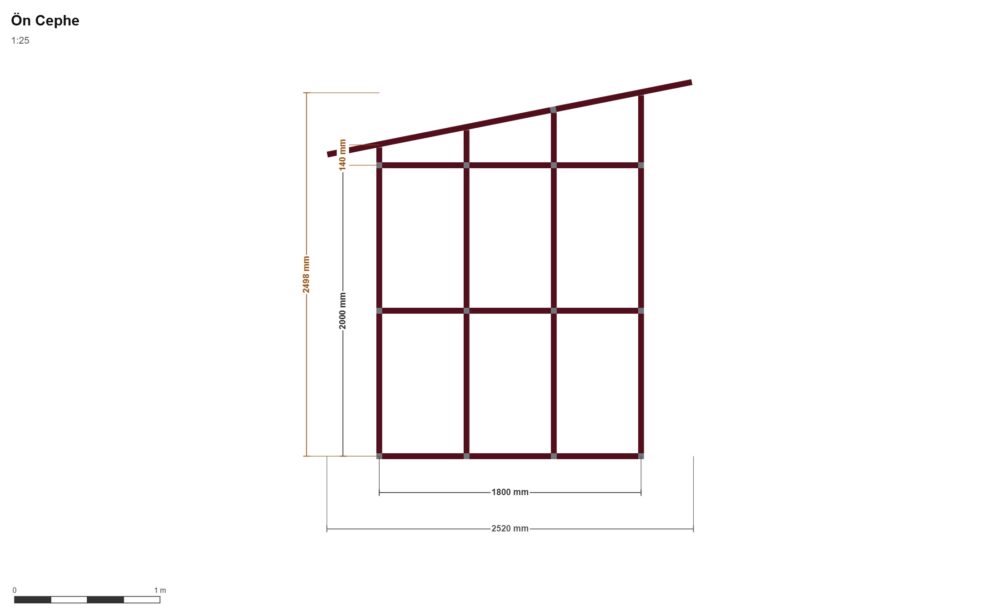

180 x 480 Depo — Ön Görünüş, ölçülü teknik çizim

180 x 480 Depo

Name: 180 x 480 Depo
Brand: Evcik
SKU: EVCIK-DSGN-92
Price: 54589.68 TRY
Availability: InStock

€882.88 %10.4 off

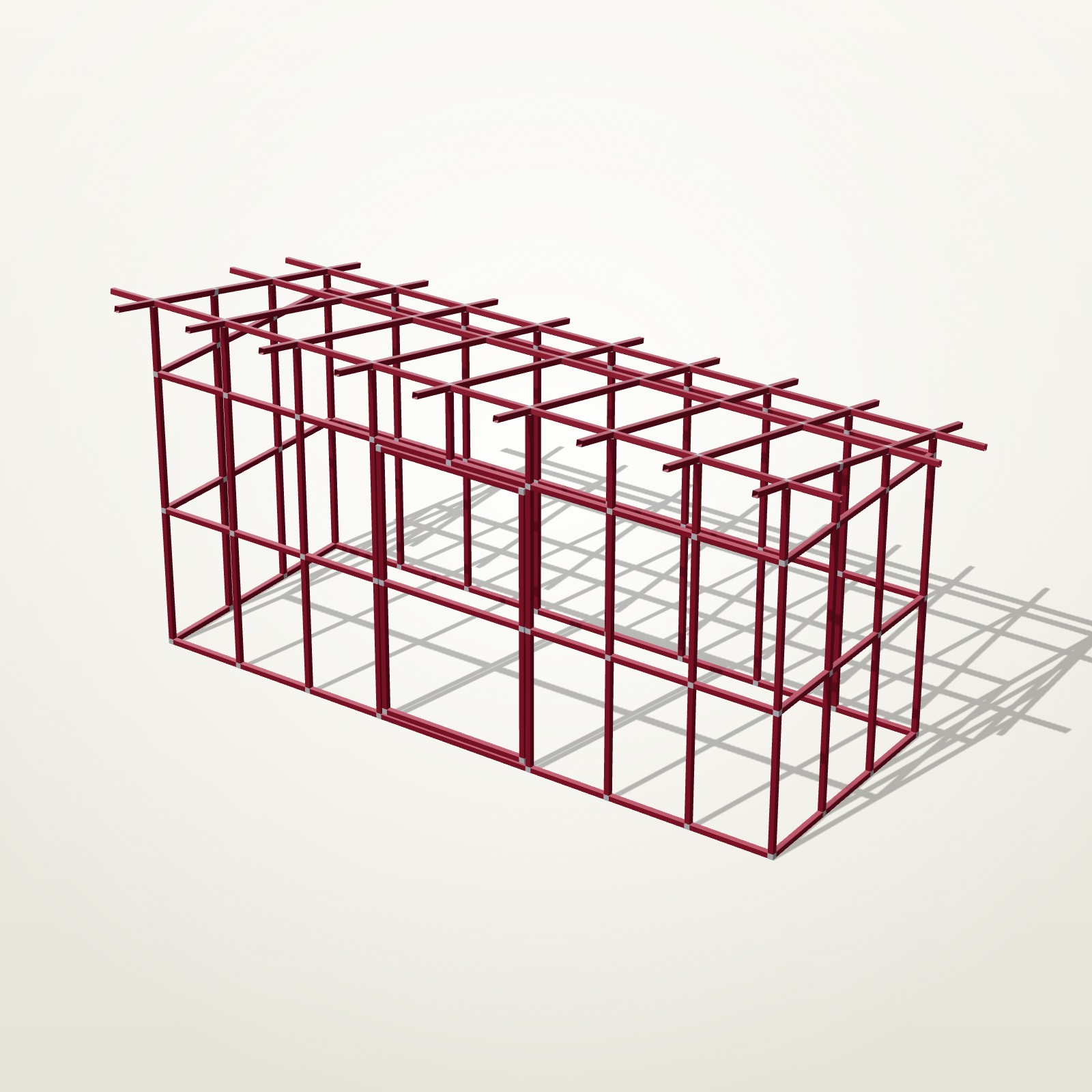

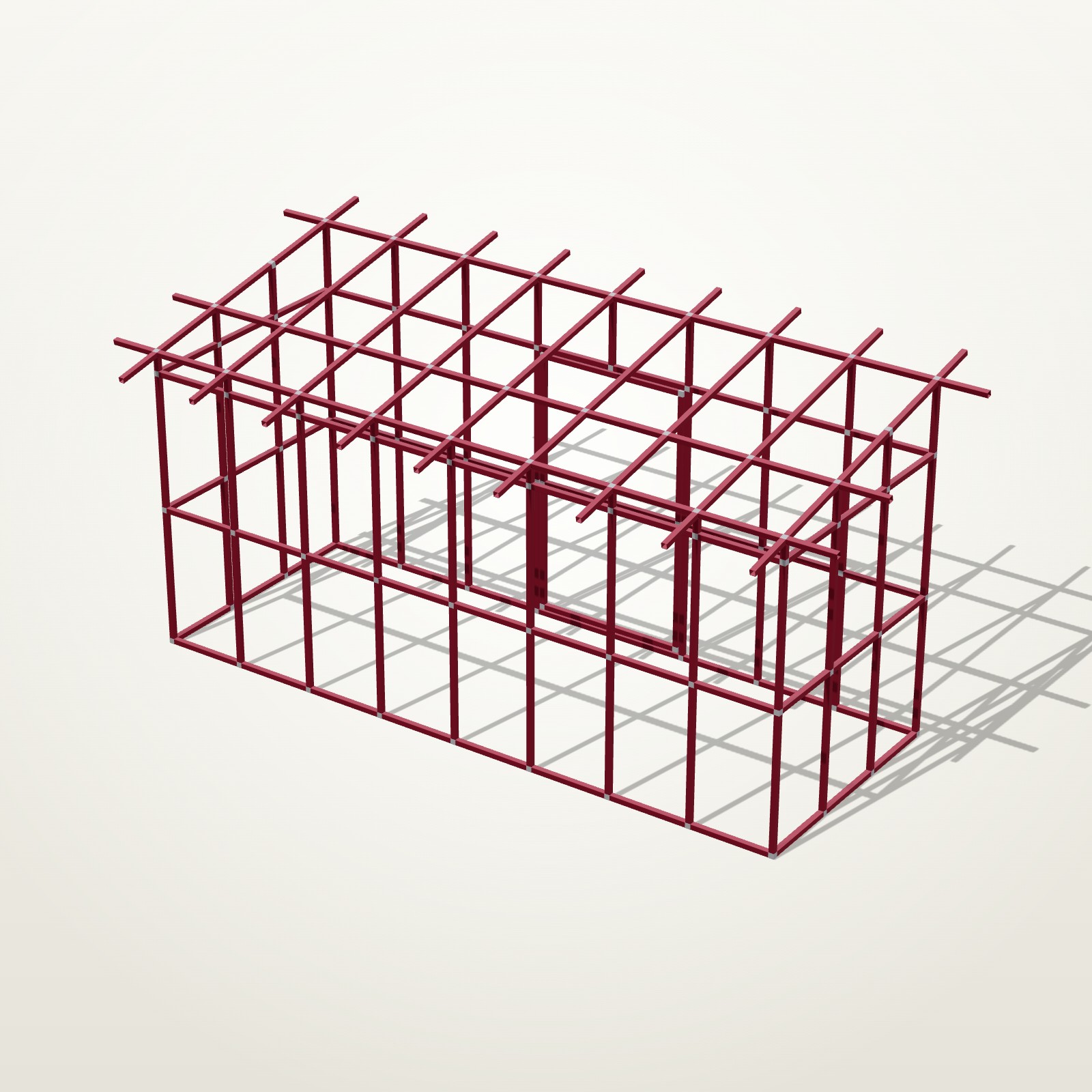

OkiFix sistemli hazır evcik — 180×480 cm, 301 parça. 3D önizlemeyi döndürerek inceleyin; “Bu Evciği Düzenle” ile ölçüleri kendinize göre uyarlayın.

This product is added to the cart as 20 line items (1061 parts in total) (profiles, OkiFix connectors and bolt sets) — see the full breakdown in the "Parts List" tab.

Edit This Evcik Assemble This Evcik

SKU: EVCIK-DSGN-92 Category: Storage Sheds

Description

Bu ürün, evcik tasarım uygulamasıyla hazırlanmış 180×480 cm ölçülerinde bir OkiFix konstrüksiyondur. Vidasız-kaynaksız OkiFix bağlantı sistemi sayesinde parçalar sökülüp yeniden kurulabilir.

Sepete eklediğinizde ürünü oluşturan tüm parçalar (profiller, OkiFix bağlantılar ve cıvata setleri) tek tek sepetinize eklenir — “Parça Listesi” sekmesinden tam dökümü ve paket bilgilerini görebilirsiniz.

Ölçüleri veya yerleşimi değiştirmek isterseniz “Bu Evciği Düzenle” butonuyla tasarımı kendi hesabınızda açıp düzenleyebilir, kendi sürümünüzü sipariş edebilirsiniz.

Parts List

All the parts that make up this Evcik are listed below; when you add it to the cart, this list is transferred to your cart exactly as shown. Prices include VAT.

Part	Length	Qty	Unit Price	Amount
Three-Way Corner Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR03-1	—	4	€4.56	€18.24
Four-Way Edge Connector Compatible with 40×40 mm Box Profiles 4040ED04-1	—	8	€5.64	€45.12
Three-Way T Connector for 40×40 mm Box Profiles with 2 mm Wall Thickness 4040ED03-1	—	22	€4.32	€95.04
Four-Way Surface Connector Compatible with 40×40 mm Box Profiles 4040MD04-1	—	39	€5.28	€205.92
11.25° Angled Five-Way Surface Connection Connector Compatible with 40×40 mm Box Profiles 4040LA05-1	—	20	€7.20	€144.00
11.25° Angle Three-Way T Connector for 40×40 mm Box Profiles 4040LA03-1	—	2	€4.56	€9.12
Two-Way L Connector for 40×40 mm 2 mm Wall Thickness Box Profiles 4040CR02-1	—	4	€3.24	€12.96
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	960 mm	42	€2.70	€113.59
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	560 mm	86	€1.85	€158.96
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	458 mm	9	€1.63	€14.67
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	339 mm	2	€1.38	€2.75
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	572 mm	13	€1.87	€24.36
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	340 mm	24	€1.38	€33.06
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1160 mm	1	€3.13	€3.13
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	219 mm	2	€1.12	€2.24
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1184 mm	7	€3.18	€22.29
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	100 mm	9	€0.86	€7.77
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	910 mm	4	€2.60	€10.39
40×40 mm Ready-to-Assemble Cut and Drilled Steel Profile (2 mm)	1060 mm	3	€2.92	€8.76
M6x45 Bolt and Nut	—	760	€0.07	€52.81
Total				€985.18
